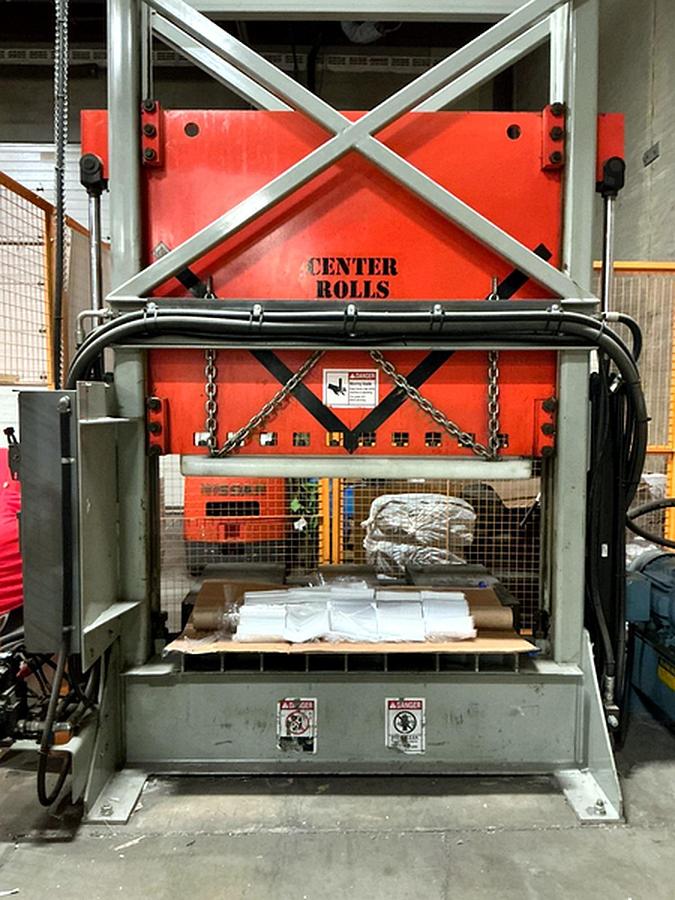

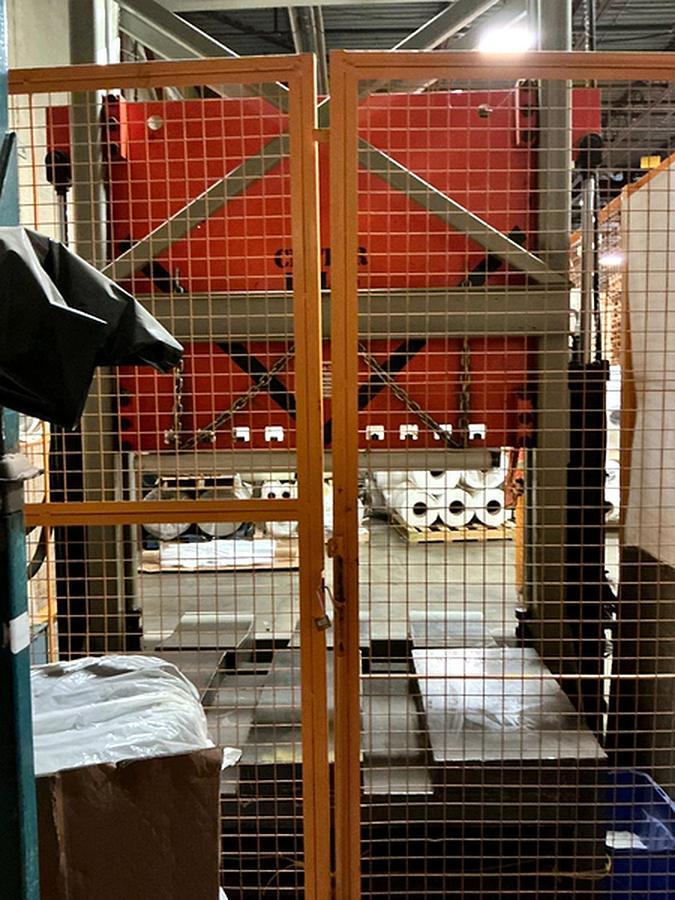

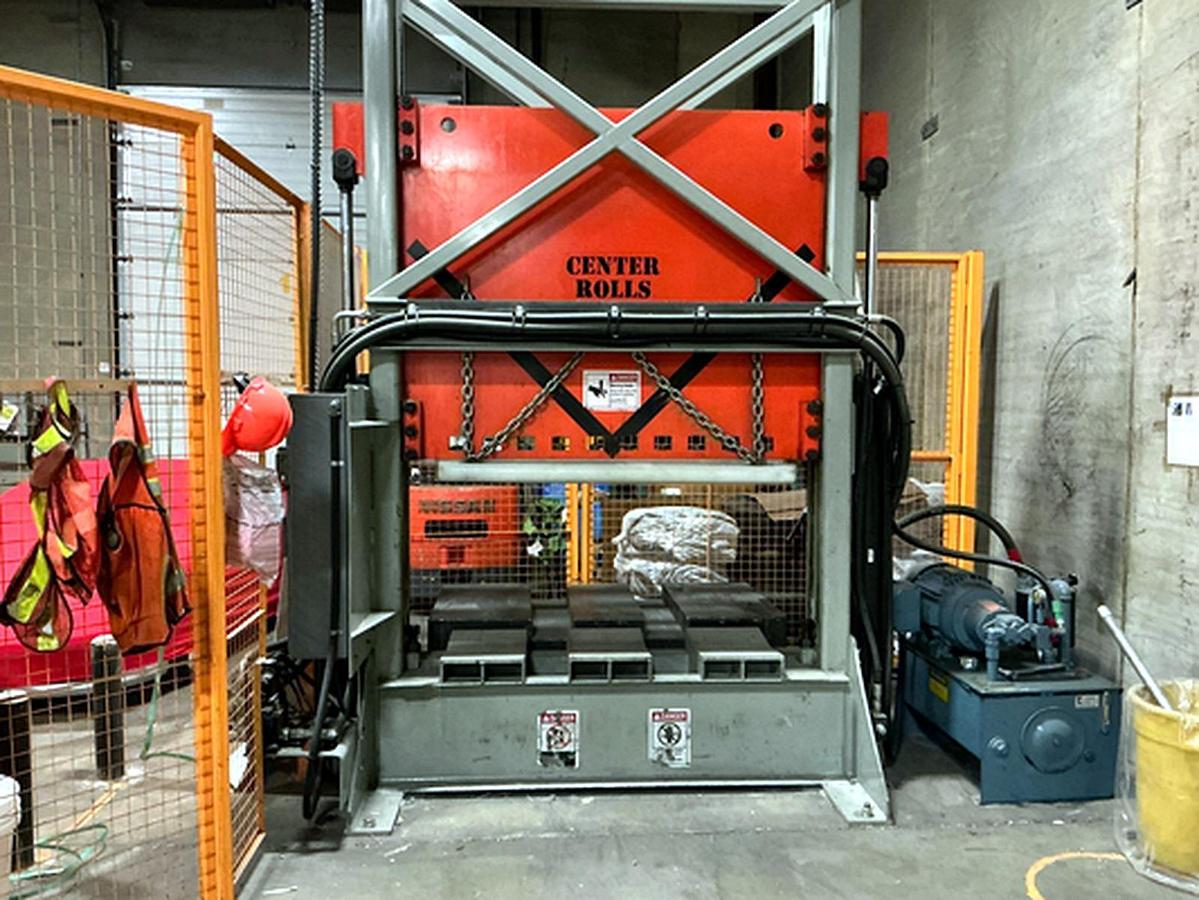

2012 James Brinkley J7 60 x 48 Hydraulic Guillotine Roll Splitter – 30 HP

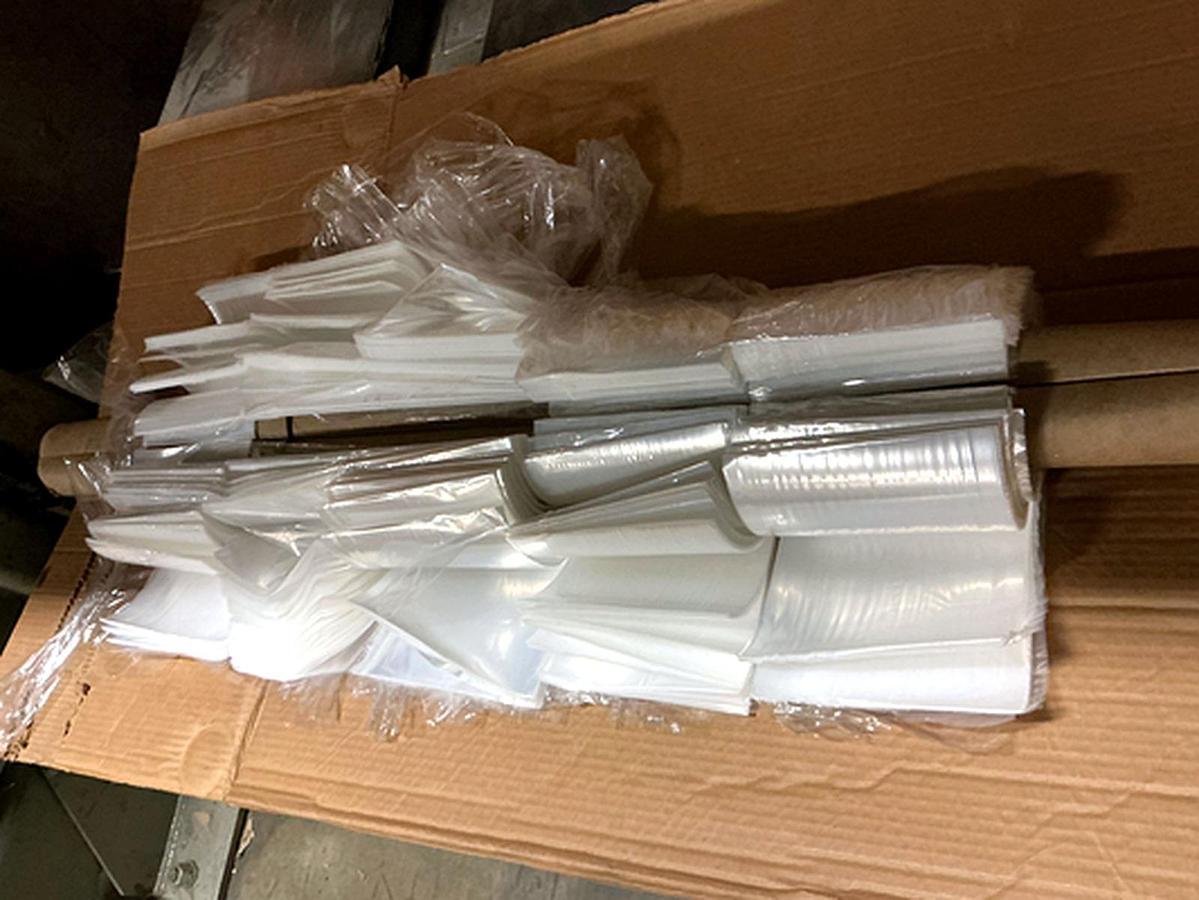

Heavy-duty 2012 James Brinkley hydraulic guillotine roll splitter designed for plastic film rolls and suitable for roll and bale size-reduction applications.

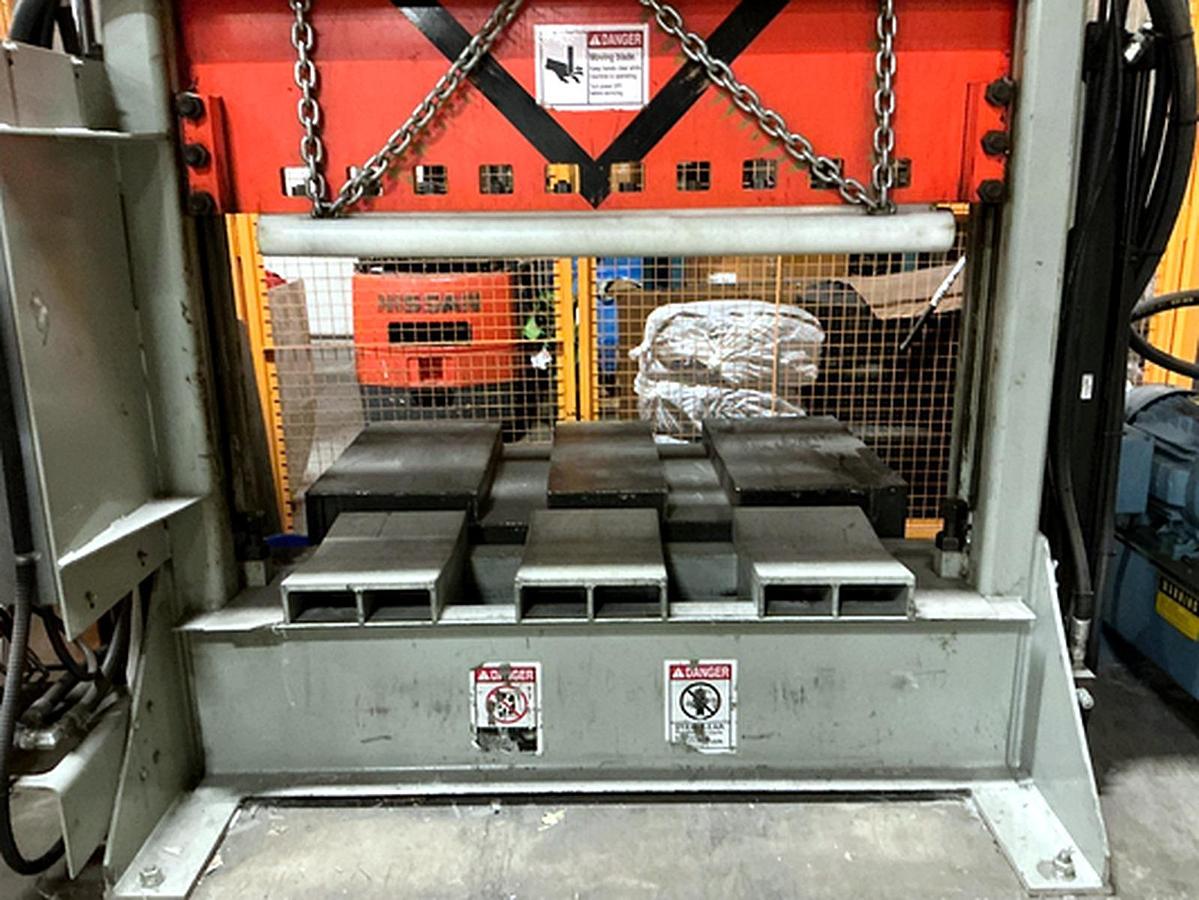

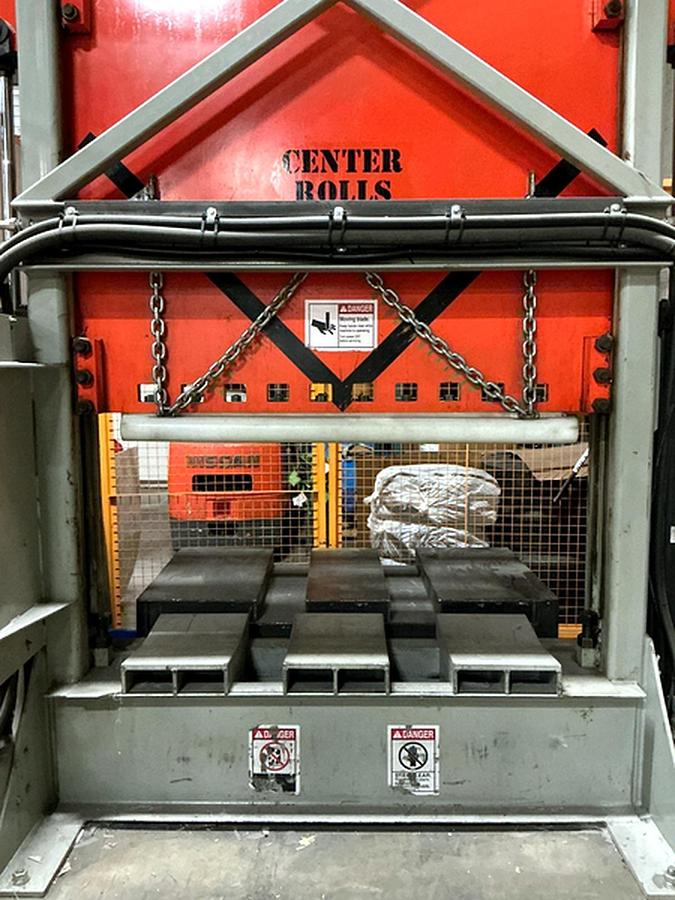

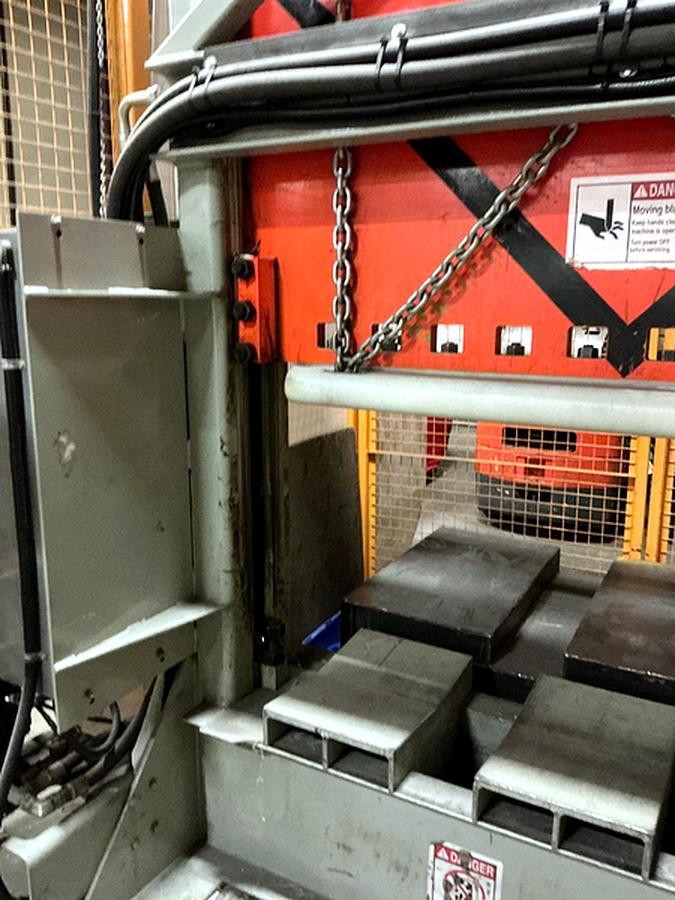

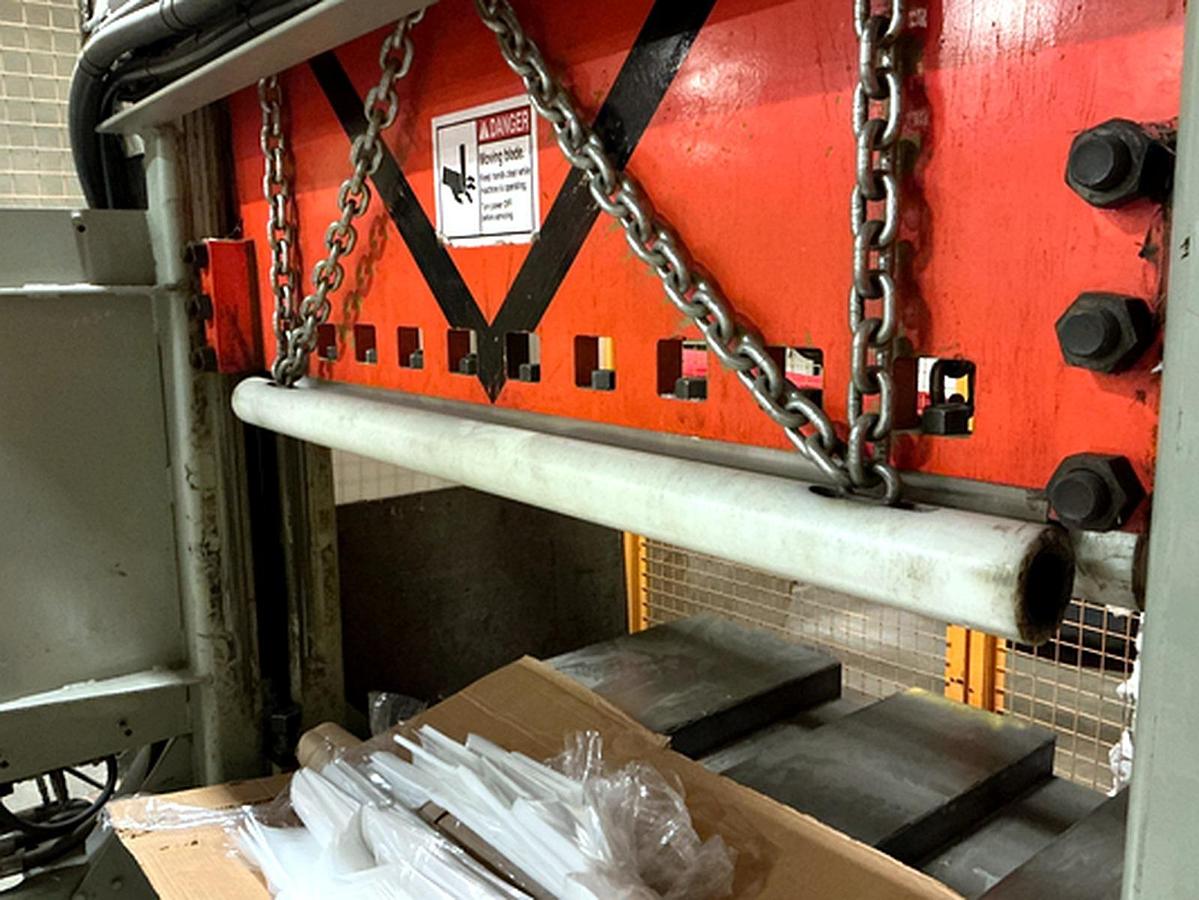

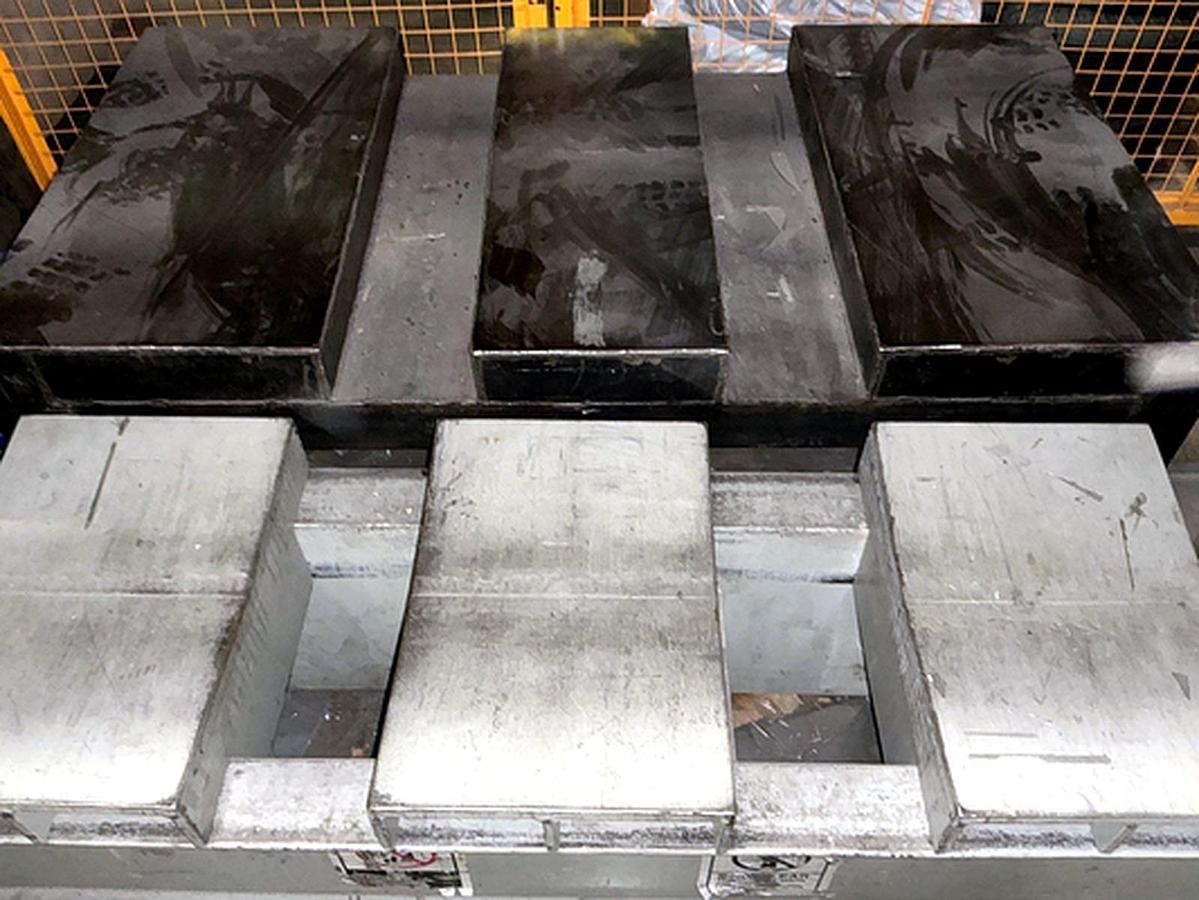

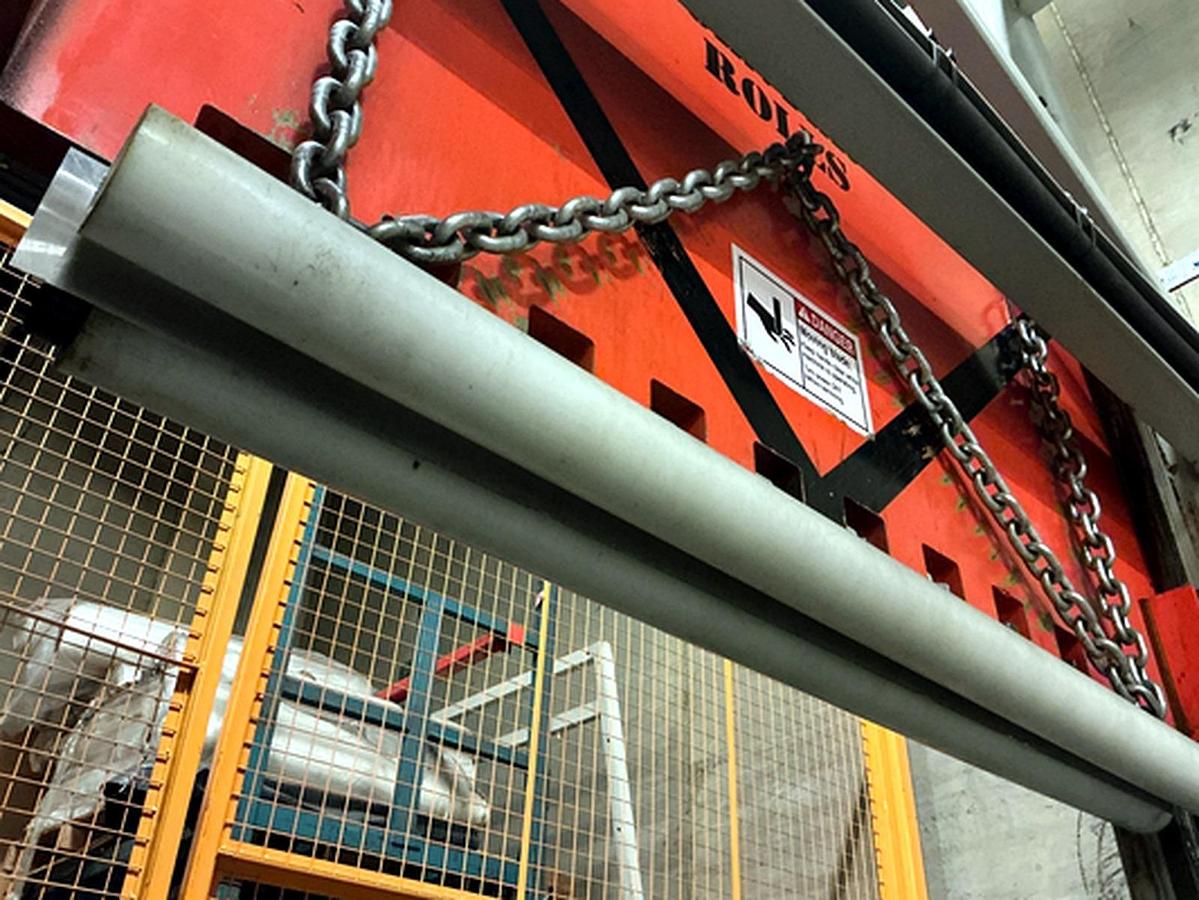

Maximum roll capacity is 60 in wide x 48 in diameter, with an approximately 40-second cycle time. Equipped with a 62 in replaceable and re-sharpenable chipper-steel knife, movable anvil roll supports, dual Parker 2H hydraulic cylinders and a 30 HP hydraulic power unit.

Key Specifications:

• Maximum Roll Width: 60 in
• Maximum Roll Diameter: 48 in
• Application: Plastic / Film
• Cycle Time: approx. 40 seconds
• Knife: 62 in replaceable and re-sharpenable

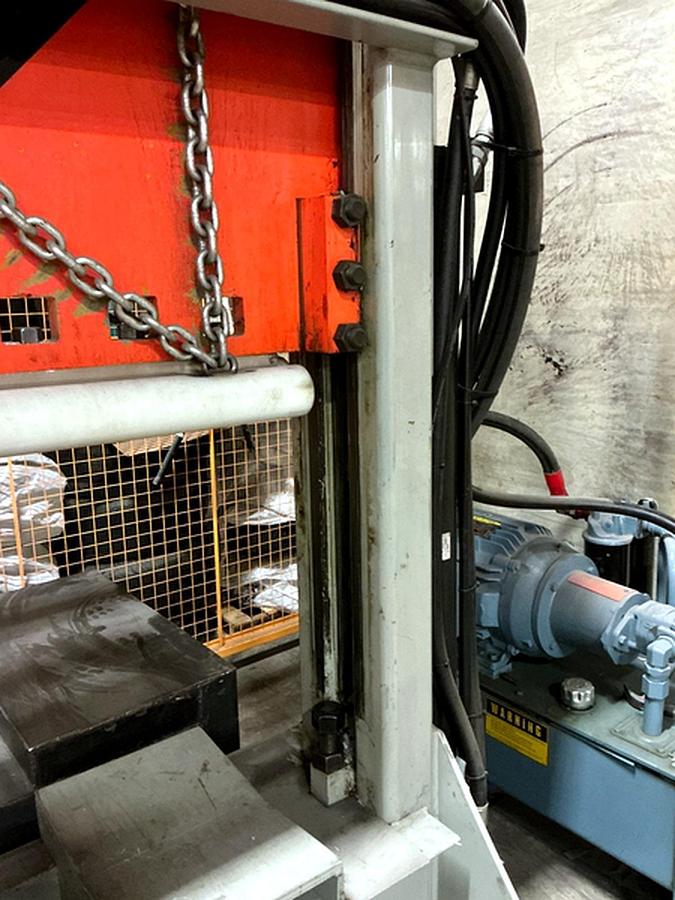

• Hydraulic Cylinders: (2) Parker 2H
• Cylinder Bore: 5 in
• Cylinder Stroke: 52 in
• Cutting Force: minimum 1,500 PLI
• Hydraulic Rating: up to 3,000 PSI
• Reservoir: 30 gal
• Hydraulic Pump: 13.4 GPM
• Pump Pressure: 2,800 PSI

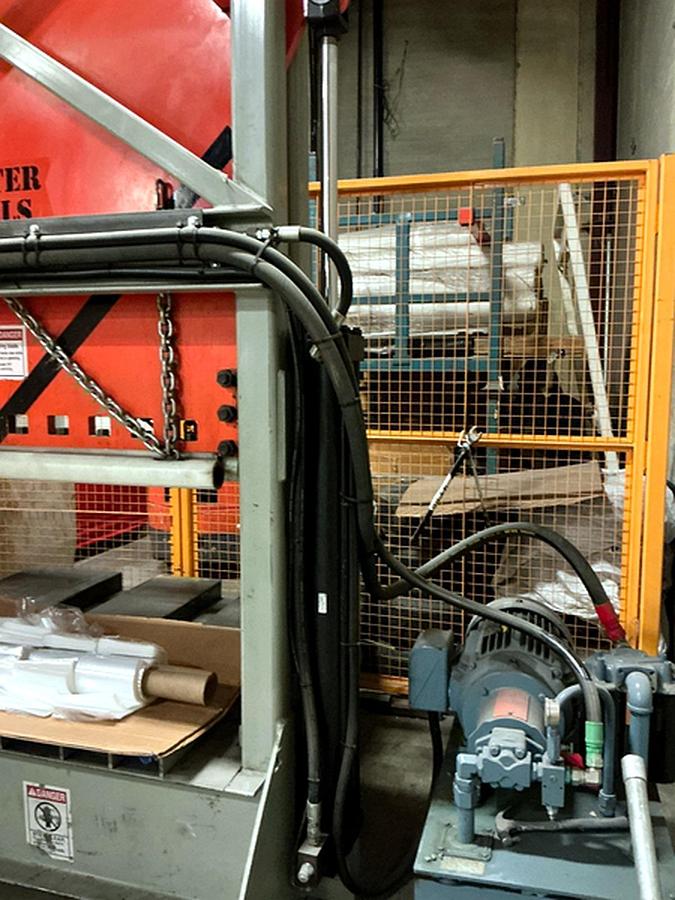

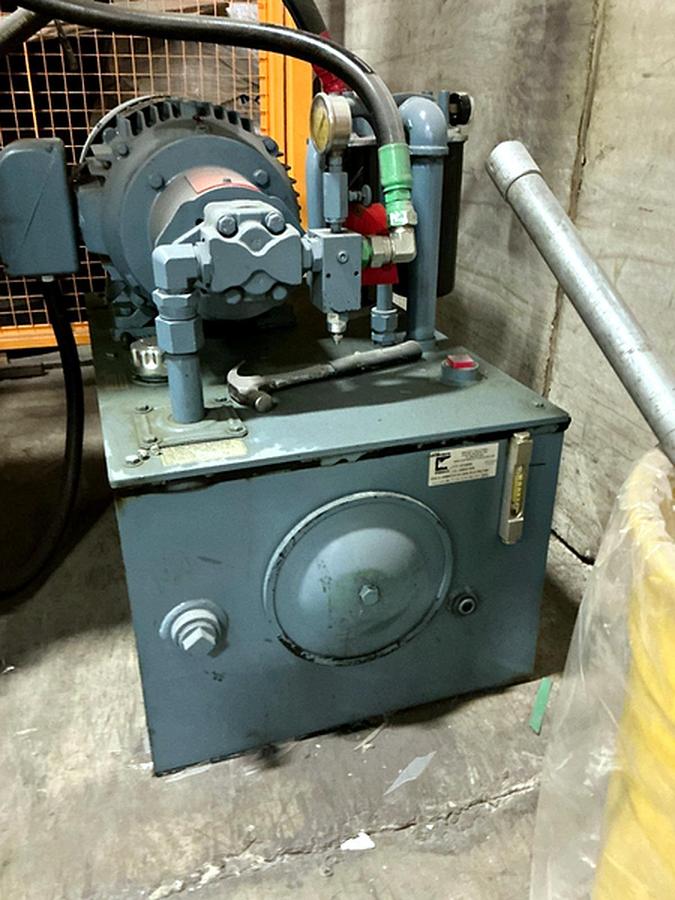

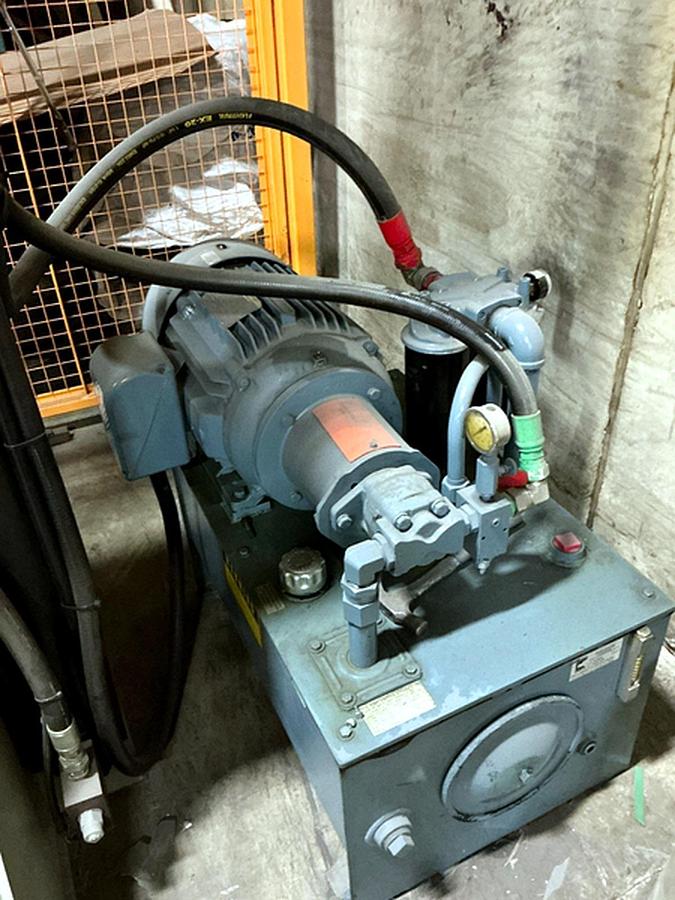

• Motor: 30 HP / 1,750 RPM / 460 VAC / 3 Phase

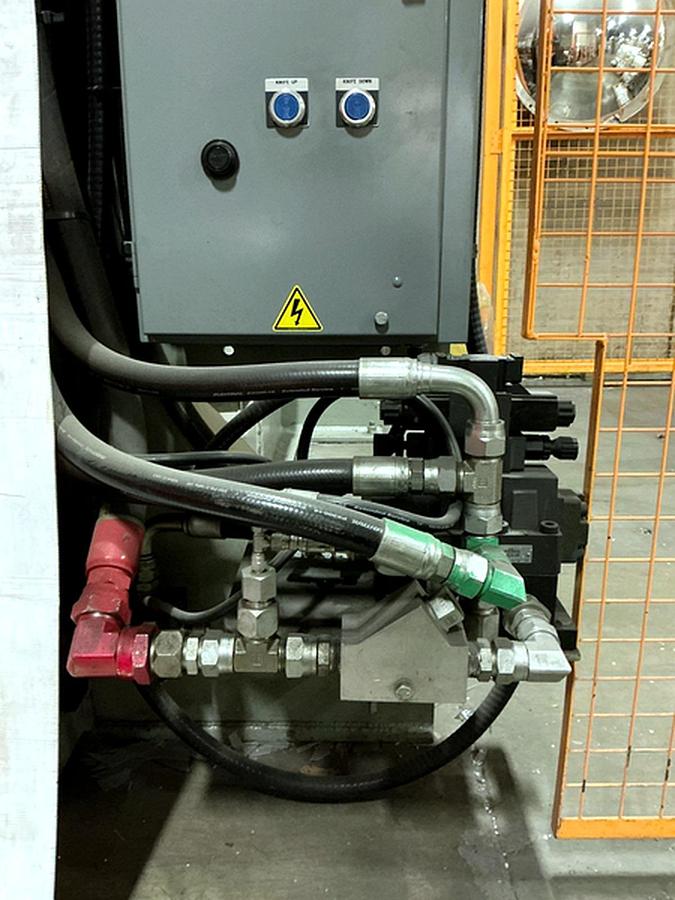

• Control Panel: NEMA 12
• Approx. Weight: 8,000 lb
• Approx. Dimensions: 100 x 80 x 150 in

Available in Ontario, Canada. Contact us for pricing, inspection, loading and freight options.
