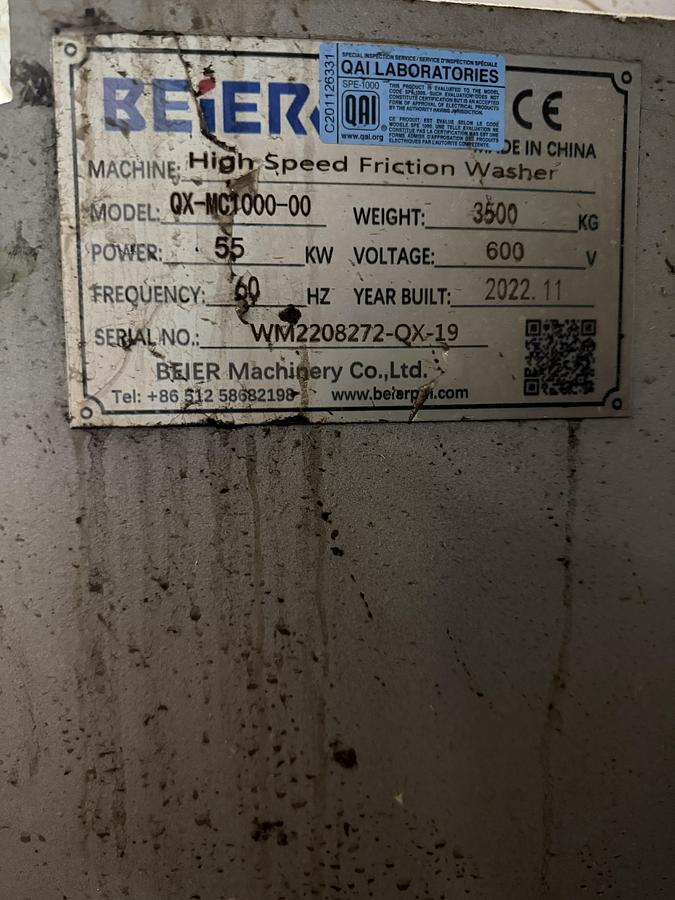

BEIER QX-MC1000-00 High Speed Friction Washer (2022) — 55kW, 600V

BEIER high speed friction washer, model QX-MC1000-00, built November 2022. Designed for high-speed friction washing of plastic flakes (PET, HDPE, PP) in recycling lines — a fast-rotating shaft driven by a 55 kW motor scrubs flakes against each other to remove dirt, sand, adhesive residue and other contaminants, flushed out through a mesh screen and water jets. This is a mid-capacity model in the QX series, smaller than the QX-PETYX-5000 (110kW) unit already listed.

Key specs:

• Weight: 3,500 kg
• Power: 55 kW
• Voltage: 600V, 3-phase, 60 Hz

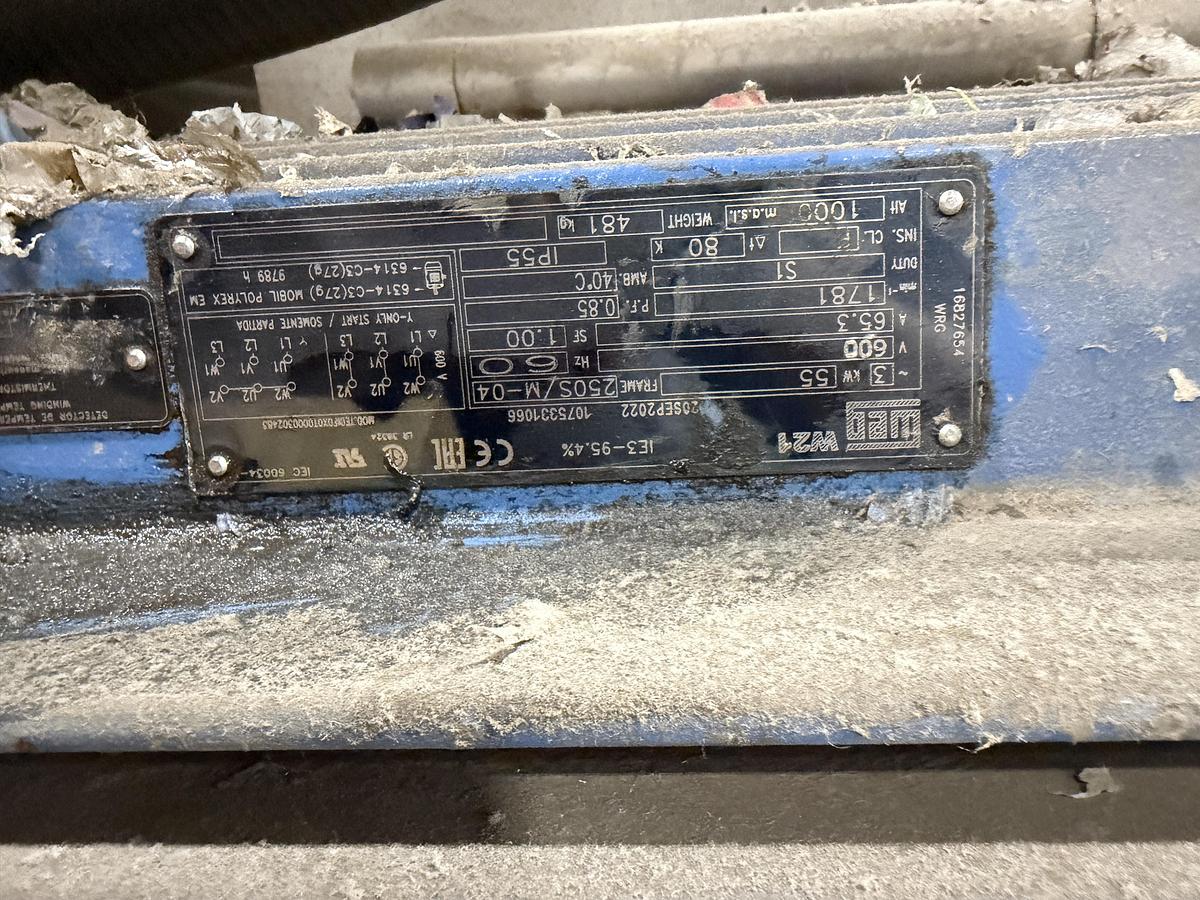

• Drive motor: WEG W21, IE3 (95.4% efficiency), frame 250S/M-04, 65.3A, manufactured 2022
• CE certified, QAI Laboratories inspected (SPE-1000 code)
• Integrated glass-panel control cabinet, elevated frame
• Feed hopper and conveyor discharge

Condition: functional unit removed from an active plastic recycling line. Shows normal wear and production residue buildup for its age (visible in photos), but mechanically sound and operational
